Ring Pro tattoo pen

Brand: HYlab®

Name: Ring Pro

Machine body Material：Aviation aluminum with CNC carving technology

Motor: Brushless internal rotor motor

Net Weight: 160g

Gross Weight: about 700g

Out Packing Size: 150×120×280 (mm)

Stroke: 4mm

Length: 133mm

Diameter: 32mm

Speed: 10200rpm (12V no load rated)

Voltage: 4v-12v (with strong start function)

Battery Capacity: 1800 mAh

Frequency: 50-170 HZ

HYlab Tattoo Machine Ring Pro

The Ring Pro tattoo machine offers precise and convenient features to enhance your tattooing experience.

Timer Function:

• Displays timer after 1 minute of work. Timing starts when the machine begins working and stops when the machine pauses. The timer resets when the machine is turned off.

Voltage Adjustment:

• Increase voltage: Press the ‘+’ key.
• Decrease voltage: Press the ‘-‘ key.

Ambient Light Color Switching:

• When paused, press the up and down keys to switch the color.

Power Control:

• Long press the power button to turn the device on or off.
• Short press the power button to enter pause mode when turned on.

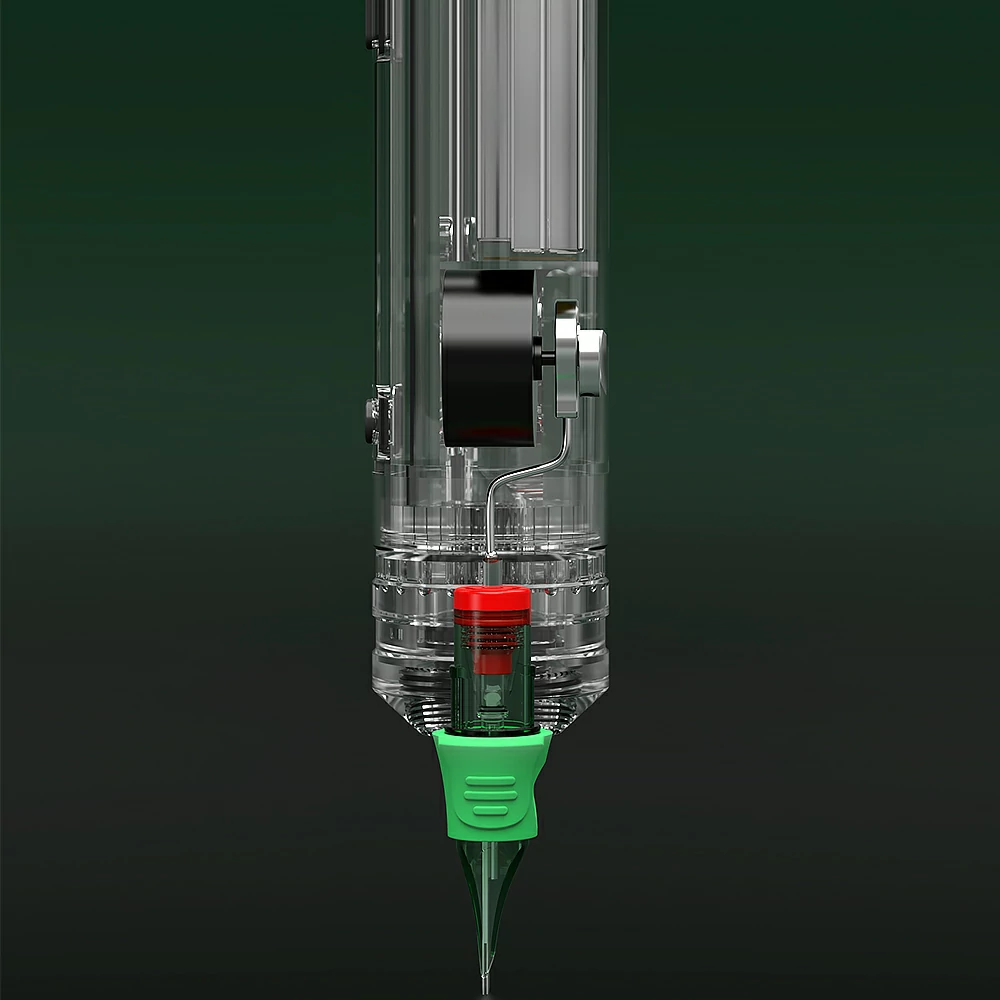

Needle Adjustment:

• Seamless and accurate needle outlet adjustment, keeping the needle facing the same direction without shaking the handle, making it easier to observe.

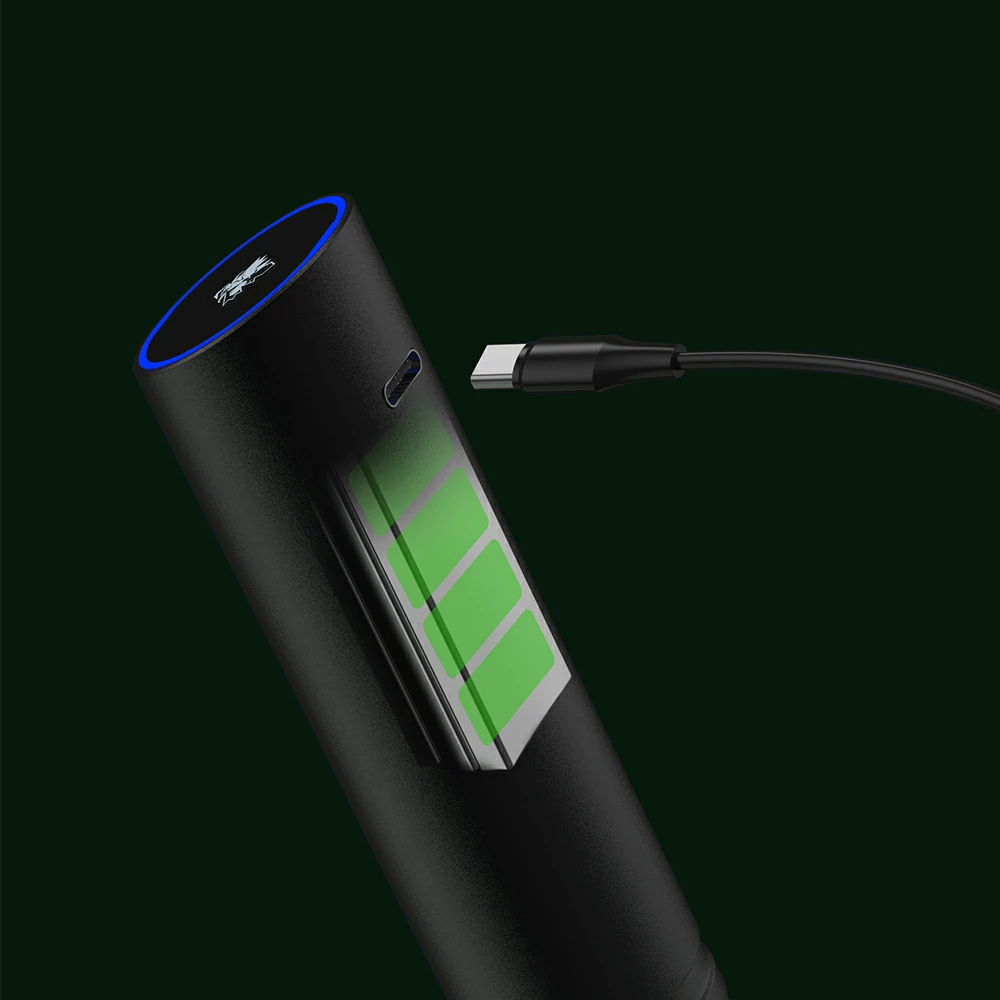

Charging:

• Type-C charging port with a voltage of 5V/1A. Charging time is about 3-5 hours. Please charge as soon as the power drops to 5%.
• Displays charging progress during charging.

Adjusting the Needle Stroke:

• Start with a small needle protrusion. Excessive protrusion may lead to excessive piercing depth, potentially injuring subcutaneous fat tissue.

Adjusting the Operating Frequency:

• Begin from a low frequency, considering the tattoo design and the body part being tattooed.

Maintenance and Care:

• Needle Compatibility: Use high-quality tattoo needles from the official HYlab website for optimal operation.
• Surface Disinfection and Cleaning: After each use, disinfect the machine’s surface with a disinfectant wipe and clean the exterior with a cleaning cloth.
• Needle Disposal: Dispose of damaged or used needles in a designated safety box according to relevant regulations to ensure safe disposal.

The Ring Pro Tattoo Machine, with its advanced features and easy maintenance, ensures a superior and seamless tattooing experience.
